CSC with a Spatial Mask

This example demonstrates the use of cbpdn.AddMaskSim for convolutional sparse coding with a spatial mask [30]. If the sporco-cuda extension is installed and a GPU is available, a GPU accelerated version is used. The example problem is inpainting of randomly distributed corruption of a greyscale image.

from __future__ import print_function
from builtins import input
from builtins import range

import pyfftw   # See https://github.com/pyFFTW/pyFFTW/issues/40
import numpy as np

from sporco import util
from sporco import metric
from sporco import linalg
from sporco import plot
plot.config_notebook_plotting()
from sporco.admm import tvl2
from sporco.admm import cbpdn
from sporco import cuda

# If running in a notebook, try to use wurlitzer so that output from the CUDA
# code will be properly captured in the notebook.
sys_pipes = util.notebook_system_output()

Load a reference image.

img = util.ExampleImages().image('monarch.png', zoom=0.5, scaled=True,
                                 gray=True, idxexp=np.s_[:, 160:672])

Create random mask and apply to reference image to obtain test image. (The call to numpy.random.seed ensures that the pseudo-random noise is reproducible.)

np.random.seed(12345)
frc = 0.5
msk = util.rndmask(img.shape, frc, dtype=np.float32)
imgw = msk * img

Define pad and crop functions.

pn = 8
spad = lambda x:  np.pad(x, pn, mode='symmetric')
zpad = lambda x:  np.pad(x, pn, mode='constant')
crop = lambda x: x[pn:-pn, pn:-pn]

Construct padded mask and test image.

mskp = zpad(msk)
imgwp = spad(imgw)

\(\ell_2\)-TV denoising with a spatial mask as a non-linear lowpass filter. The highpass component is the difference between the test image and the lowpass component, multiplied by the mask for faster convergence of the convolutional sparse coding (see [40]).

lmbda = 0.05
opt = tvl2.TVL2Denoise.Options({'Verbose': False, 'MaxMainIter': 200,
                    'DFidWeight': mskp, 'gEvalY': False,
                    'AutoRho': {'Enabled': True}})
b = tvl2.TVL2Denoise(imgwp, lmbda, opt)
sl = b.solve()
sh = mskp * (imgwp - sl)

Load dictionary.

D = util.convdicts()['G:8x8x128']

Set up admm.cbpdn.ConvBPDN options.

lmbda = 2e-2
opt = cbpdn.ConvBPDN.Options({'Verbose': True, 'MaxMainIter': 200,
                    'HighMemSolve': True, 'RelStopTol': 5e-3,
                    'AuxVarObj': False, 'RelaxParam': 1.8,
                    'rho': 5e1*lmbda + 1e-1, 'AutoRho': {'Enabled': False,
                    'StdResiduals': False}})

Construct admm.cbpdn.AddMaskSim wrapper for admm.cbpdn.ConvBPDN and solve via wrapper. This example could also have made use of admm.cbpdn.ConvBPDNMaskDcpl (see example cbpdn_md_gry), which has similar performance in this application, but admm.cbpdn.AddMaskSim has the advantage of greater flexibility in that the wrapper can be applied to a variety of CSC solver objects. If the sporco-cuda extension is installed and a GPU is available, use the CUDA implementation of this combination.

if cuda.device_count() > 0:
    ams = None
    print('%s GPU found: running CUDA solver' % cuda.device_name())
    tm = util.Timer()
    with sys_pipes(), util.ContextTimer(tm):
        X = cuda.cbpdnmsk(D, sh, mskp, lmbda, opt)
    t = tm.elapsed()
    imgr = crop(sl + np.sum(linalg.fftconv(D, X), axis=-1))
else:
    ams = cbpdn.AddMaskSim(cbpdn.ConvBPDN, D, sh, mskp, lmbda, opt=opt)
    X = ams.solve()
    t = ams.timer.elapsed('solve')
    imgr = crop(sl + ams.reconstruct().squeeze())
Tesla K40c GPU found: running CUDA solver
Itn   Fnc       DFid      Regℓ1     r         s         ρ
----------------------------------------------------------------
   0  3.10e+01  4.24e-02  1.55e+03  9.94e-01  1.85e-01  1.10e+00
   1  2.71e+01  2.17e-01  1.35e+03  8.05e-01  2.20e-01  1.10e+00
   2  2.54e+01  3.46e-01  1.25e+03  4.52e-01  1.83e-01  1.10e+00
   3  2.44e+01  4.27e-01  1.20e+03  3.05e-01  1.48e-01  1.10e+00
   4  2.36e+01  4.89e-01  1.16e+03  2.30e-01  1.24e-01  1.10e+00
   5  2.32e+01  5.39e-01  1.13e+03  1.87e-01  1.07e-01  1.10e+00
   6  2.29e+01  5.79e-01  1.12e+03  1.60e-01  9.26e-02  1.10e+00
   7  2.28e+01  6.13e-01  1.11e+03  1.41e-01  8.11e-02  1.10e+00
   8  2.27e+01  6.43e-01  1.10e+03  1.27e-01  7.20e-02  1.10e+00
   9  2.26e+01  6.71e-01  1.10e+03  1.17e-01  6.49e-02  1.10e+00
  10  2.24e+01  6.99e-01  1.08e+03  1.09e-01  5.96e-02  1.10e+00
  11  2.21e+01  7.26e-01  1.07e+03  1.02e-01  5.56e-02  1.10e+00
  12  2.18e+01  7.53e-01  1.05e+03  9.67e-02  5.27e-02  1.10e+00
  13  2.15e+01  7.78e-01  1.04e+03  9.20e-02  5.06e-02  1.10e+00
  14  2.12e+01  8.02e-01  1.02e+03  8.64e-02  4.88e-02  1.10e+00
  15  2.10e+01  8.24e-01  1.01e+03  8.44e-02  4.75e-02  1.10e+00
  16  2.08e+01  8.43e-01  9.95e+02  8.12e-02  4.63e-02  1.10e+00
  17  2.05e+01  8.60e-01  9.84e+02  7.83e-02  4.52e-02  1.10e+00
  18  2.04e+01  8.76e-01  9.74e+02  7.55e-02  4.40e-02  1.10e+00
  19  2.02e+01  8.91e-01  9.66e+02  7.30e-02  4.26e-02  1.10e+00
  20  2.01e+01  9.06e-01  9.59e+02  7.07e-02  4.08e-02  1.10e+00
  21  1.99e+01  9.22e-01  9.47e+02  6.84e-02  3.90e-02  1.10e+00
  22  1.96e+01  9.39e-01  9.31e+02  6.58e-02  3.76e-02  1.10e+00
  23  1.92e+01  9.57e-01  9.10e+02  6.40e-02  3.62e-02  1.10e+00
  24  1.87e+01  9.76e-01  8.86e+02  6.17e-02  3.50e-02  1.10e+00
  25  1.82e+01  9.96e-01  8.62e+02  5.98e-02  3.37e-02  1.10e+00
  26  1.78e+01  1.02e+00  8.40e+02  5.78e-02  3.25e-02  1.10e+00
  27  1.74e+01  1.04e+00  8.19e+02  5.50e-02  3.12e-02  1.10e+00
  28  1.71e+01  1.05e+00  8.01e+02  5.41e-02  3.00e-02  1.10e+00
  29  1.68e+01  1.07e+00  7.86e+02  5.23e-02  2.89e-02  1.10e+00
  30  1.65e+01  1.09e+00  7.73e+02  5.07e-02  2.80e-02  1.10e+00
  31  1.63e+01  1.11e+00  7.61e+02  4.89e-02  2.70e-02  1.10e+00
  32  1.61e+01  1.12e+00  7.51e+02  4.76e-02  2.62e-02  1.10e+00
  33  1.60e+01  1.13e+00  7.42e+02  4.62e-02  2.53e-02  1.10e+00
  34  1.58e+01  1.15e+00  7.34e+02  4.47e-02  2.45e-02  1.10e+00
  35  1.57e+01  1.16e+00  7.27e+02  4.37e-02  2.38e-02  1.10e+00
  36  1.56e+01  1.17e+00  7.19e+02  4.26e-02  2.30e-02  1.10e+00
  37  1.54e+01  1.18e+00  7.12e+02  4.14e-02  2.24e-02  1.10e+00
  38  1.53e+01  1.19e+00  7.03e+02  4.03e-02  2.18e-02  1.10e+00
  39  1.51e+01  1.19e+00  6.94e+02  3.86e-02  2.12e-02  1.10e+00
  40  1.49e+01  1.20e+00  6.85e+02  3.83e-02  2.07e-02  1.10e+00
  41  1.47e+01  1.21e+00  6.75e+02  3.70e-02  2.02e-02  1.10e+00
  42  1.45e+01  1.22e+00  6.66e+02  3.64e-02  1.98e-02  1.10e+00
  43  1.44e+01  1.23e+00  6.57e+02  3.51e-02  1.93e-02  1.10e+00
  44  1.42e+01  1.24e+00  6.50e+02  3.45e-02  1.88e-02  1.10e+00
  45  1.41e+01  1.24e+00  6.43e+02  3.32e-02  1.83e-02  1.10e+00
  46  1.40e+01  1.25e+00  6.36e+02  3.31e-02  1.78e-02  1.10e+00
  47  1.39e+01  1.26e+00  6.31e+02  3.22e-02  1.73e-02  1.10e+00
  48  1.38e+01  1.26e+00  6.25e+02  3.16e-02  1.69e-02  1.10e+00
  49  1.37e+01  1.27e+00  6.19e+02  3.07e-02  1.65e-02  1.10e+00
  50  1.35e+01  1.28e+00  6.14e+02  3.02e-02  1.61e-02  1.10e+00
  51  1.34e+01  1.28e+00  6.08e+02  2.95e-02  1.58e-02  1.10e+00
  52  1.33e+01  1.29e+00  6.02e+02  2.89e-02  1.54e-02  1.10e+00
  53  1.32e+01  1.29e+00  5.97e+02  2.83e-02  1.52e-02  1.10e+00
  54  1.31e+01  1.30e+00  5.92e+02  2.77e-02  1.48e-02  1.10e+00
  55  1.30e+01  1.30e+00  5.87e+02  2.70e-02  1.45e-02  1.10e+00
  56  1.30e+01  1.30e+00  5.83e+02  2.64e-02  1.42e-02  1.10e+00
  57  1.29e+01  1.30e+00  5.78e+02  2.61e-02  1.39e-02  1.10e+00
  58  1.28e+01  1.31e+00  5.74e+02  2.56e-02  1.36e-02  1.10e+00
  59  1.27e+01  1.31e+00  5.69e+02  2.51e-02  1.33e-02  1.10e+00
  60  1.26e+01  1.31e+00  5.65e+02  2.46e-02  1.31e-02  1.10e+00
  61  1.25e+01  1.32e+00  5.60e+02  2.42e-02  1.28e-02  1.10e+00
  62  1.24e+01  1.32e+00  5.56e+02  2.38e-02  1.25e-02  1.10e+00
  63  1.24e+01  1.32e+00  5.52e+02  2.33e-02  1.23e-02  1.10e+00
  64  1.23e+01  1.32e+00  5.47e+02  2.29e-02  1.21e-02  1.10e+00
  65  1.22e+01  1.33e+00  5.43e+02  2.25e-02  1.19e-02  1.10e+00
  66  1.21e+01  1.33e+00  5.38e+02  2.21e-02  1.17e-02  1.10e+00
  67  1.20e+01  1.33e+00  5.34e+02  2.18e-02  1.15e-02  1.10e+00
  68  1.19e+01  1.33e+00  5.30e+02  2.14e-02  1.14e-02  1.10e+00
  69  1.19e+01  1.34e+00  5.27e+02  2.10e-02  1.12e-02  1.10e+00
  70  1.18e+01  1.34e+00  5.23e+02  2.06e-02  1.10e-02  1.10e+00
  71  1.18e+01  1.34e+00  5.20e+02  2.03e-02  1.08e-02  1.10e+00
  72  1.17e+01  1.34e+00  5.18e+02  1.99e-02  1.06e-02  1.10e+00
  73  1.17e+01  1.35e+00  5.15e+02  1.97e-02  1.03e-02  1.10e+00
  74  1.16e+01  1.35e+00  5.13e+02  1.94e-02  1.01e-02  1.10e+00
  75  1.16e+01  1.35e+00  5.10e+02  1.91e-02  9.94e-03  1.10e+00
  76  1.15e+01  1.35e+00  5.08e+02  1.88e-02  9.72e-03  1.10e+00
  77  1.15e+01  1.36e+00  5.05e+02  1.85e-02  9.56e-03  1.10e+00
  78  1.14e+01  1.36e+00  5.02e+02  1.79e-02  9.40e-03  1.10e+00
  79  1.13e+01  1.36e+00  4.99e+02  1.77e-02  9.24e-03  1.10e+00
  80  1.13e+01  1.36e+00  4.95e+02  1.75e-02  9.11e-03  1.10e+00
  81  1.12e+01  1.37e+00  4.92e+02  1.73e-02  8.99e-03  1.10e+00
  82  1.11e+01  1.37e+00  4.89e+02  1.71e-02  8.87e-03  1.10e+00
  83  1.11e+01  1.37e+00  4.86e+02  1.68e-02  8.76e-03  1.10e+00
  84  1.10e+01  1.37e+00  4.83e+02  1.66e-02  8.63e-03  1.10e+00
  85  1.10e+01  1.37e+00  4.80e+02  1.63e-02  8.51e-03  1.10e+00
  86  1.09e+01  1.38e+00  4.78e+02  1.61e-02  8.37e-03  1.10e+00
  87  1.09e+01  1.38e+00  4.75e+02  1.58e-02  8.24e-03  1.10e+00
  88  1.08e+01  1.38e+00  4.73e+02  1.56e-02  8.12e-03  1.10e+00
  89  1.08e+01  1.38e+00  4.71e+02  1.54e-02  8.00e-03  1.10e+00
  90  1.08e+01  1.38e+00  4.69e+02  1.52e-02  7.86e-03  1.10e+00
  91  1.07e+01  1.39e+00  4.67e+02  1.47e-02  7.73e-03  1.10e+00
  92  1.07e+01  1.39e+00  4.65e+02  1.47e-02  7.60e-03  1.10e+00
  93  1.06e+01  1.39e+00  4.63e+02  1.45e-02  7.50e-03  1.10e+00
  94  1.06e+01  1.39e+00  4.61e+02  1.42e-02  7.35e-03  1.10e+00
  95  1.06e+01  1.39e+00  4.59e+02  1.42e-02  7.24e-03  1.10e+00
  96  1.05e+01  1.40e+00  4.57e+02  1.38e-02  7.12e-03  1.10e+00
  97  1.05e+01  1.40e+00  4.55e+02  1.37e-02  7.01e-03  1.10e+00
  98  1.05e+01  1.40e+00  4.54e+02  1.35e-02  6.90e-03  1.10e+00
  99  1.04e+01  1.40e+00  4.52e+02  1.34e-02  6.80e-03  1.10e+00
 100  1.04e+01  1.40e+00  4.50e+02  1.31e-02  6.69e-03  1.10e+00
 101  1.04e+01  1.40e+00  4.49e+02  1.30e-02  6.60e-03  1.10e+00
 102  1.03e+01  1.40e+00  4.47e+02  1.29e-02  6.50e-03  1.10e+00
 103  1.03e+01  1.41e+00  4.45e+02  1.26e-02  6.42e-03  1.10e+00
 104  1.03e+01  1.41e+00  4.43e+02  1.25e-02  6.33e-03  1.10e+00
 105  1.02e+01  1.41e+00  4.42e+02  1.23e-02  6.25e-03  1.10e+00
 106  1.02e+01  1.41e+00  4.40e+02  1.21e-02  6.18e-03  1.10e+00
 107  1.02e+01  1.41e+00  4.38e+02  1.20e-02  6.10e-03  1.10e+00
 108  1.01e+01  1.41e+00  4.36e+02  1.18e-02  6.03e-03  1.10e+00
 109  1.01e+01  1.41e+00  4.34e+02  1.16e-02  5.95e-03  1.10e+00
 110  1.01e+01  1.41e+00  4.33e+02  1.15e-02  5.87e-03  1.10e+00
 111  1.00e+01  1.42e+00  4.31e+02  1.13e-02  5.79e-03  1.10e+00
 112  1.00e+01  1.42e+00  4.29e+02  1.12e-02  5.71e-03  1.10e+00
 113  9.97e+00  1.42e+00  4.28e+02  1.11e-02  5.64e-03  1.10e+00
 114  9.95e+00  1.42e+00  4.26e+02  1.07e-02  5.56e-03  1.10e+00
 115  9.92e+00  1.42e+00  4.25e+02  1.08e-02  5.50e-03  1.10e+00
 116  9.89e+00  1.42e+00  4.24e+02  1.05e-02  5.41e-03  1.10e+00
 117  9.87e+00  1.42e+00  4.22e+02  1.05e-02  5.35e-03  1.10e+00
 118  9.84e+00  1.42e+00  4.21e+02  1.03e-02  5.27e-03  1.10e+00
 119  9.81e+00  1.42e+00  4.19e+02  1.01e-02  5.21e-03  1.10e+00
 120  9.78e+00  1.42e+00  4.18e+02  1.01e-02  5.14e-03  1.10e+00
 121  9.76e+00  1.42e+00  4.17e+02  9.97e-03  5.07e-03  1.10e+00
 122  9.73e+00  1.42e+00  4.16e+02  9.84e-03  5.04e-03  1.10e+00
 123  9.71e+00  1.42e+00  4.14e+02  9.72e-03  4.95e-03  1.10e+00
 124  9.69e+00  1.43e+00  4.13e+02  9.59e-03  4.90e-03  1.10e+00
 125  9.66e+00  1.43e+00  4.12e+02  9.49e-03  4.82e-03  1.10e+00
 126  9.64e+00  1.43e+00  4.11e+02  9.37e-03  4.76e-03  1.10e+00
 127  9.62e+00  1.43e+00  4.09e+02  9.26e-03  4.70e-03  1.10e+00
 128  9.59e+00  1.43e+00  4.08e+02  8.95e-03  4.64e-03  1.10e+00
 129  9.57e+00  1.43e+00  4.07e+02  9.06e-03  4.58e-03  1.10e+00
 130  9.55e+00  1.43e+00  4.06e+02  8.92e-03  4.52e-03  1.10e+00
 131  9.53e+00  1.43e+00  4.05e+02  8.81e-03  4.47e-03  1.10e+00
 132  9.51e+00  1.43e+00  4.04e+02  8.71e-03  4.41e-03  1.10e+00
 133  9.48e+00  1.43e+00  4.03e+02  8.60e-03  4.35e-03  1.10e+00
 134  9.46e+00  1.43e+00  4.02e+02  8.50e-03  4.29e-03  1.10e+00
 135  9.44e+00  1.43e+00  4.01e+02  8.40e-03  4.24e-03  1.10e+00
 136  9.43e+00  1.43e+00  4.00e+02  8.30e-03  4.18e-03  1.10e+00
 137  9.41e+00  1.43e+00  3.99e+02  8.19e-03  4.13e-03  1.10e+00
 138  9.39e+00  1.44e+00  3.98e+02  8.10e-03  4.08e-03  1.10e+00
 139  9.37e+00  1.44e+00  3.97e+02  7.92e-03  4.03e-03  1.10e+00
 140  9.35e+00  1.44e+00  3.96e+02  7.93e-03  3.99e-03  1.10e+00
 141  9.33e+00  1.44e+00  3.95e+02  7.82e-03  3.94e-03  1.10e+00
 142  9.31e+00  1.44e+00  3.94e+02  7.73e-03  3.91e-03  1.10e+00
 143  9.29e+00  1.44e+00  3.93e+02  7.64e-03  3.85e-03  1.10e+00
 144  9.27e+00  1.44e+00  3.92e+02  7.56e-03  3.82e-03  1.10e+00
 145  9.25e+00  1.44e+00  3.91e+02  7.47e-03  3.77e-03  1.10e+00
 146  9.23e+00  1.44e+00  3.90e+02  7.32e-03  3.73e-03  1.10e+00
 147  9.21e+00  1.44e+00  3.89e+02  7.30e-03  3.69e-03  1.10e+00
 148  9.20e+00  1.44e+00  3.88e+02  7.22e-03  3.64e-03  1.10e+00
 149  9.18e+00  1.44e+00  3.87e+02  7.22e-03  3.62e-03  1.10e+00
 150  9.16e+00  1.44e+00  3.86e+02  7.05e-03  3.56e-03  1.10e+00
 151  9.15e+00  1.44e+00  3.85e+02  6.98e-03  3.53e-03  1.10e+00
 152  9.13e+00  1.44e+00  3.84e+02  6.90e-03  3.48e-03  1.10e+00
 153  9.12e+00  1.44e+00  3.84e+02  6.79e-03  3.44e-03  1.10e+00
 154  9.10e+00  1.44e+00  3.83e+02  6.61e-03  3.40e-03  1.10e+00
 155  9.09e+00  1.45e+00  3.82e+02  6.68e-03  3.37e-03  1.10e+00
 156  9.07e+00  1.45e+00  3.81e+02  6.60e-03  3.33e-03  1.10e+00
 157  9.06e+00  1.45e+00  3.80e+02  6.53e-03  3.29e-03  1.10e+00
 158  9.04e+00  1.45e+00  3.80e+02  6.38e-03  3.25e-03  1.10e+00
 159  9.03e+00  1.45e+00  3.79e+02  6.39e-03  3.22e-03  1.10e+00
 160  9.01e+00  1.45e+00  3.78e+02  6.32e-03  3.18e-03  1.10e+00
 161  9.00e+00  1.45e+00  3.77e+02  6.26e-03  3.15e-03  1.10e+00
 162  8.98e+00  1.45e+00  3.77e+02  6.19e-03  3.11e-03  1.10e+00
 163  8.97e+00  1.45e+00  3.76e+02  6.12e-03  3.07e-03  1.10e+00
 164  8.95e+00  1.45e+00  3.75e+02  6.06e-03  3.03e-03  1.10e+00
 165  8.94e+00  1.45e+00  3.75e+02  6.00e-03  3.00e-03  1.10e+00
 166  8.93e+00  1.45e+00  3.74e+02  5.93e-03  2.97e-03  1.10e+00
 167  8.92e+00  1.45e+00  3.73e+02  5.87e-03  2.93e-03  1.10e+00
 168  8.90e+00  1.45e+00  3.73e+02  5.81e-03  2.90e-03  1.10e+00
 169  8.89e+00  1.45e+00  3.72e+02  5.67e-03  2.88e-03  1.10e+00
 170  8.88e+00  1.45e+00  3.71e+02  5.68e-03  2.84e-03  1.10e+00
 171  8.87e+00  1.45e+00  3.71e+02  5.59e-03  2.81e-03  1.10e+00
 172  8.85e+00  1.45e+00  3.70e+02  5.54e-03  2.79e-03  1.10e+00
 173  8.84e+00  1.45e+00  3.69e+02  5.50e-03  2.76e-03  1.10e+00
 174  8.83e+00  1.45e+00  3.69e+02  5.40e-03  2.73e-03  1.10e+00
 175  8.82e+00  1.45e+00  3.68e+02  5.37e-03  2.71e-03  1.10e+00
 176  8.81e+00  1.45e+00  3.68e+02  5.34e-03  2.67e-03  1.10e+00
 177  8.80e+00  1.46e+00  3.67e+02  5.28e-03  2.64e-03  1.10e+00
 178  8.79e+00  1.46e+00  3.67e+02  5.23e-03  2.61e-03  1.10e+00
 179  8.78e+00  1.46e+00  3.66e+02  5.13e-03  2.58e-03  1.10e+00
 180  8.77e+00  1.46e+00  3.66e+02  5.13e-03  2.55e-03  1.10e+00
 181  8.76e+00  1.46e+00  3.65e+02  5.04e-03  2.52e-03  1.10e+00
 182  8.75e+00  1.46e+00  3.65e+02  4.93e-03  2.49e-03  1.10e+00
----------------------------------------------------------------

Display solve time and reconstruction performance.

print("AddMaskSim wrapped ConvBPDN solve time: %.2fs" % t)
print("Corrupted image PSNR: %5.2f dB" % metric.psnr(img, imgw))
print("Recovered image PSNR: %5.2f dB" % metric.psnr(img, imgr))
AddMaskSim wrapped ConvBPDN solve time: 3.13s
Corrupted image PSNR:  9.17 dB
Recovered image PSNR: 24.57 dB

Display reference, test, and reconstructed image

fig = plot.figure(figsize=(21, 7))
plot.subplot(1, 3, 1)
plot.imview(img, title='Reference image', fig=fig)
plot.subplot(1, 3, 2)
plot.imview(imgw, title='Corrupted image', fig=fig)
plot.subplot(1, 3, 3)
plot.imview(imgr, title='Reconstructed image', fig=fig)
fig.show()
../../_images/cbpdn_ams_gry_21_0.png

Display lowpass component and sparse representation

fig = plot.figure(figsize=(14, 7))
plot.subplot(1, 2, 1)
plot.imview(sl, cmap=plot.cm.Blues, title='Lowpass component', fig=fig)
plot.subplot(1, 2, 2)
plot.imview(np.sum(abs(X).squeeze(), axis=-1), cmap=plot.cm.Blues,
            title='Sparse representation', fig=fig)
fig.show()
../../_images/cbpdn_ams_gry_23_0.png

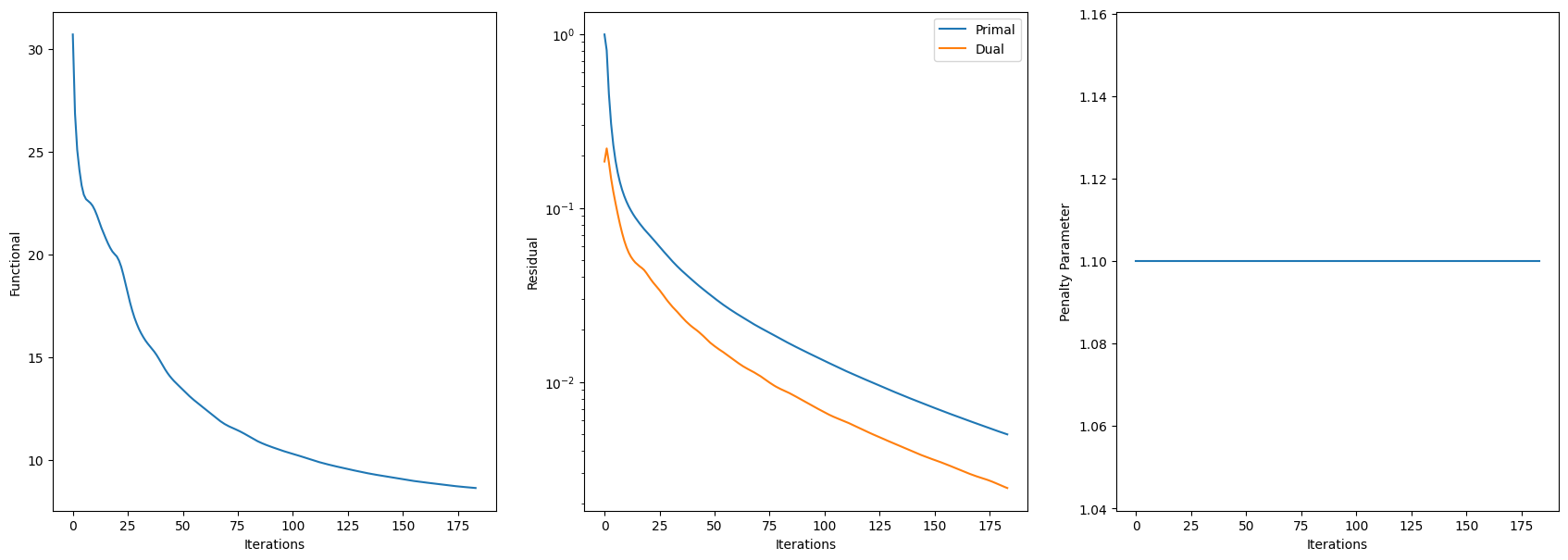

Plot functional value, residuals, and rho (not available if GPU implementation used).

if ams is not None:
    its = ams.getitstat()
    fig = plot.figure(figsize=(21, 7))
    plot.subplot(1, 3, 1)
    plot.plot(its.ObjFun, xlbl='Iterations', ylbl='Functional', fig=fig)
    plot.subplot(1, 3, 2)
    plot.plot(np.vstack((its.PrimalRsdl, its.DualRsdl)).T, ptyp='semilogy',
              xlbl='Iterations', ylbl='Residual', lgnd=['Primal', 'Dual'],
              fig=fig)
    plot.subplot(1, 3, 3)
    plot.plot(its.Rho, xlbl='Iterations', ylbl='Penalty Parameter', fig=fig)
    fig.show()
